GTS Countmaster consumables

INDIVIDUAL BANDEROLES FOR PRINTED PRODUCTS AND VALUABLES

Customized banderoles for printings and security papers

Please choose material:

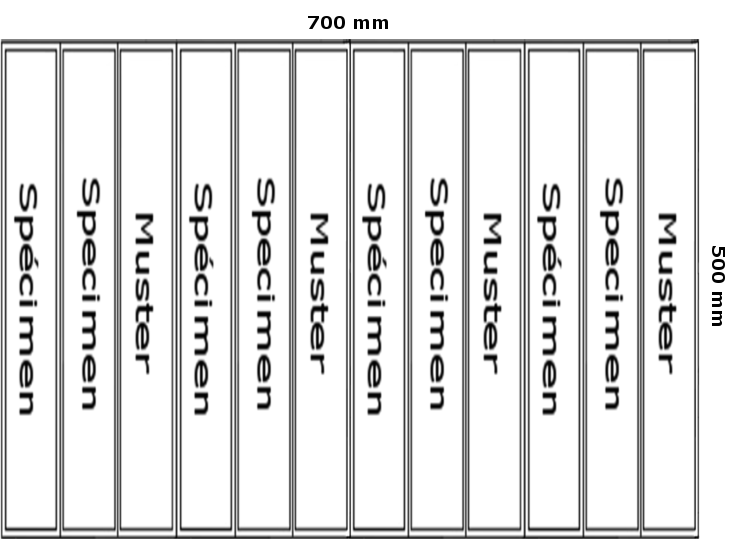

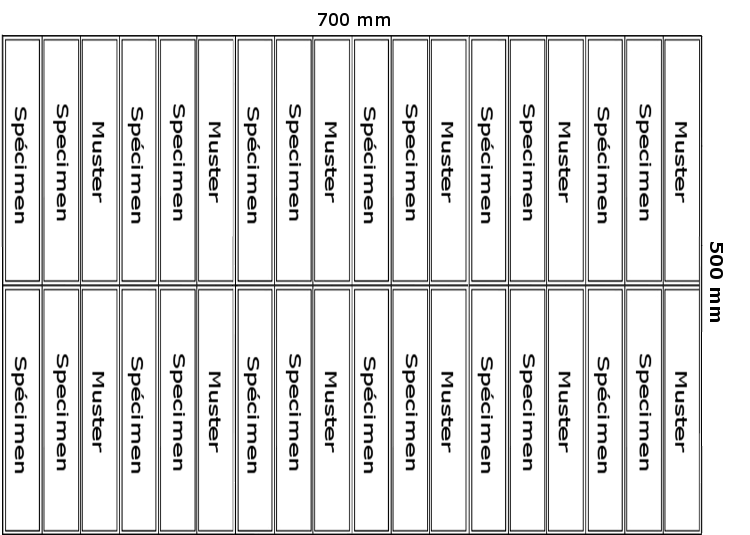

Banderoles on printed sheets

Technical specifications:

Material: 90 g/qm booking paper
  or by your choice
sheet size: 500 x 700 mm
Colour: Pantone
  or by your choice
Number of colours : by your choice
Print: offset
Quantity: 100s depending on width in two
  usable rows with 36 pieces / sheet
  1000s depending on width in
  usable row with 12 pieces / sheet
Delivered: cut pieces or uncut sheets



Printing colours:
Specification: Water based Flexo colour
Optional: Dilutable Flexo colour
Viscosity: 25 - 35 sec. (DIN cup 4mm)
Hot glue:
Type: Granules
Colour: white
Softening point: 100 - 110 degrees Celsius
Viscosity: 850 - 1200 mPa at 160 degrees Celsius
Processing temperature.: 150 - 180 degrees Celsius
Processed: Partially shot

Dispersion glue:

Type: Wet glue
Colour: dyed blue
Viscosity: 3500 - 6000 mPa/s
Processed: Partially shot



100s sheet: 1000s sheet:



Paper coated banderols PE

Tape rolls on the roll

Technical specifications:

Material: Kraft paper 80 g/qm
Colour: White
  or by your choice
Format: Roll diameter about 320mm
  Roll width 28mm - 60mm
Core: 76mm or 120mm
Coating: Polyethylene PE
Thickness: 25 My
Colour: Transparent
Colour Quantity: up to 3
Printing: Flexo print
Coating: partially by hot stamp
Temperature: 180 degree Celsius
Delivery: 100er - 3000 pieces / roll
  1000er - 1500 pieces / roll

Printing colors
:
Specifications: Water-based Flexo colour
Option: Dilutable Flexo colour
Viscosity: 25 - 35 sec. (DIN cup 4mm)





Paper banderoles

Banderoles on rolls

Technical specifications:

Material: 90 g/qm book paper
  or by your choice
Roll format: Roll diameter about 320mm
  Roll width 28mm - 60mm
Core size: 76mm, 100mm, 120mm
  or by your choice
Colour: Pantone


or by your choice

Colours quantity: up to 3
Printing: Flexo print
Coating: partially glued
Temperature: >140 degree Celsius
Delivery: 100s - 3000s pieces / roll
  1000s - 1500s pieces / roll

Printing colours
:
Specifications: Water based Flexo colour
Option: Dilutable Flexo colour
Viscosity: 25 - 35 sec. (DIN cup 4mm)
Hot glue:
Type: Granules
Colour: White
Softening point: 100 - 110 degree Celsius
Viscosity: 850 - 1200 mPa at 160 degree Celsius
Processing temperature.: 150 - 180 degree Celsius
Processed: Partially shot:
Type: Wet glue
Color: Dyed blue
Softening point:
Viscosity: 3500 - 6000 mPa/s
Processed: Partially shot





OPP foil laminated banderoles

Banderolls on roll

Technical specifications:

Material: Polypropylen PP
Roll format: Rollendurchmesser ca. 320mm
  Rollenbreite 28mm - 60mm
Core size: 76mm oder 120mm
Colour: Transparent und weiss
  oder nach Wahl
Colour quantity: bis zu drei
Printing: Flexo Druck
Coating: partiell durch Heizstempel
Temperature: 180 grad Celsius
Delivery: 100er - 3000 Stck./Rolle
  1000er - 1500 Stck./Rolle

Druckerfarben
:
Spezifikation: Wasserbasierende - Flexofarbe
Option: Verduennbare - Flexofarbe
Viskositaet: 25 - 35 Sek. (DIN-Becher 4mm)

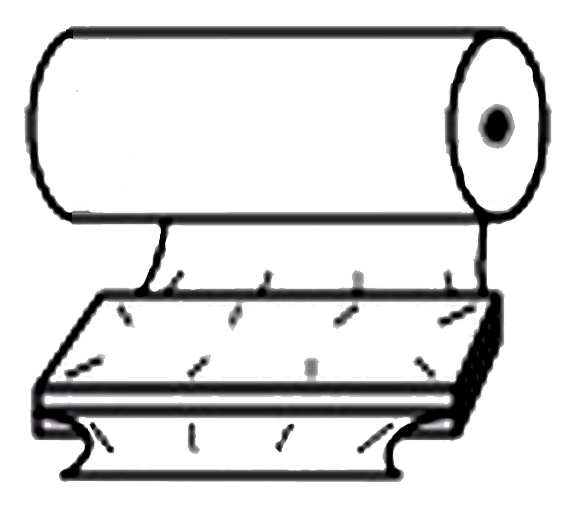

PE shrinking foil

Technical specifications:

Material: Polyethylen PE
Type: Halbschlauch oder Flachfolie
Format: nach Wunsch
Roll format: Rollendurchmesser ca. 320mm
  Rollenbreite nach Spezifikation
Core size: 76mm
Type: biaxial schrumpfend 40 - 60 Prozent
  nadelperforiert
  transparent
  bedruckt, wahlweise innen oder aussen
Staerke: ab 30 My nach Wahl
Colour: Transparent oder nach Wahl
Printing: Flexo Druck
Schrumpfung: im Tunnel
Schrumpf-Temperatur: nach Staerke
Delivery: Flachfolie 1000 mtr. / Rolle
  Halbschlauch 650 mtr. / Rolle



GTS banderoles for valuables

CC_Banderolen_en_de.pdf (428.5 KiB)
